Platform Host Dataset

Censys offers a comprehensive view of internet-connected assets through its Platform dataset. At the core of this dataset are hosts, which represent individual IP addresses (IPv4 or IPv6) and their associated information. This article delves into the host data model within the Censys Platform, illustrating how hosts and their services are represented and the rich data they encompass.

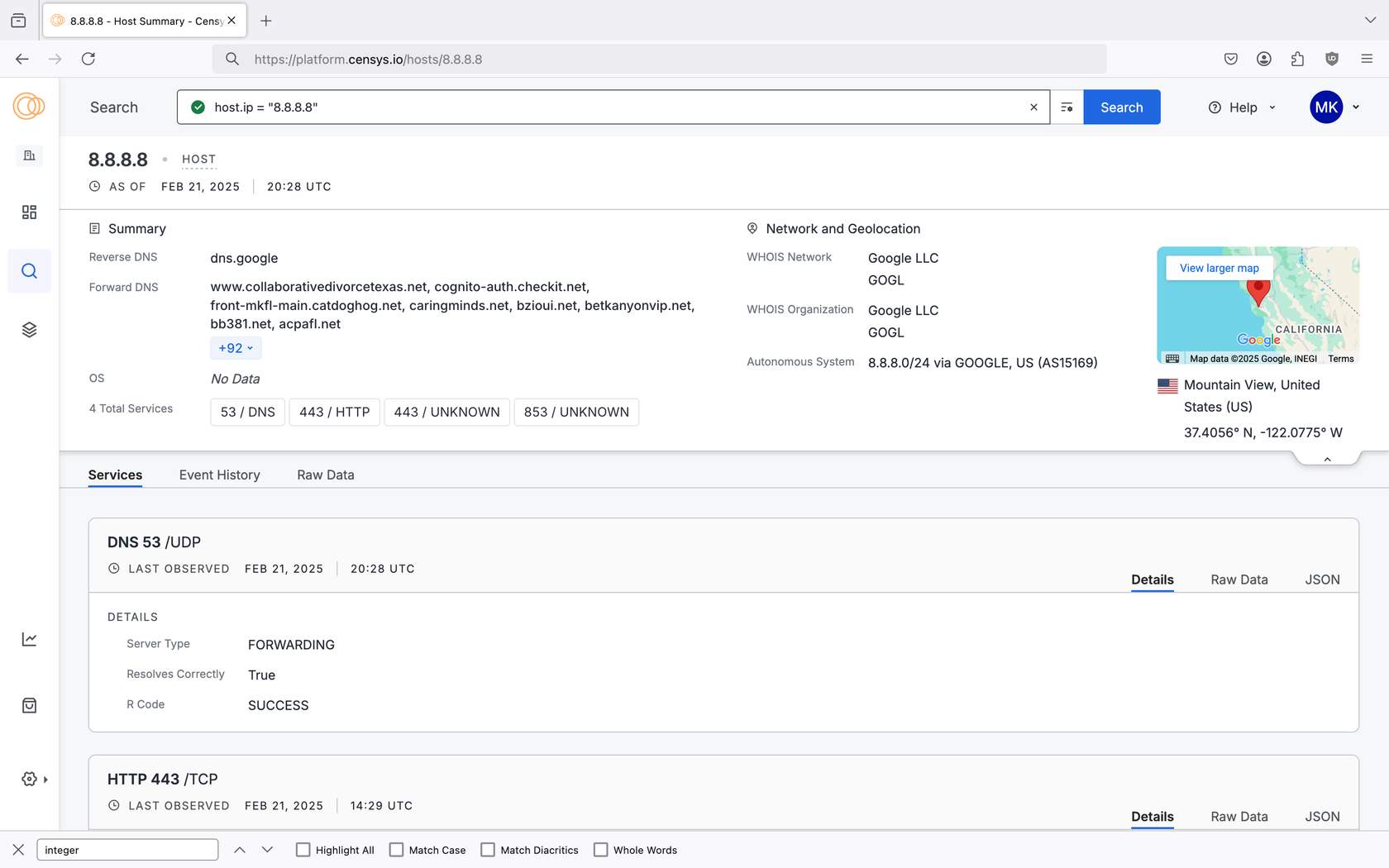

In the Censys Platform, a host is defined by a unique IP address, represented as the top-level field host.ip. Each host record encapsulates various data points describing the host's characteristics and behaviors. These records are accessible via the Censys Platform interface and API, providing users with detailed insights into the attributes of each host.

📘

Note

Read this article to learn about how Censys scans the internet to build its datasets.

Host data model and enrichment

The host data model is structured to provide a comprehensive overview of each IP address and is enriched with information from Censys and third-party sources. Host data records can consist of multiple objects and nested objects that describe them and the services present on them.

Key components and enrichment aspects of a host record include:

• Location: Detailed geographical information associated with the IP address, such as country, region, city, postal code, and estimated latitude and longitude. This allows for understanding the physical distribution of assets.
• Network routing: Information about the network path to the host, including Autonomous System Numbers (ASNs) and the organizations that own these networks. This is crucial for understanding network infrastructure and identifying potential points of origin or control.
• DNS information: Resolution of IP addresses to associated domain names (forward DNS lookups) and identification of PTR records (reverse DNS lookups), providing valuable context about the purpose and ownership of a host.
• Operating system details: Censys attempts to identify the operating system running on the host based on network behavior and service banners, which is crucial for understanding the host's configuration and potential vulnerabilities.
• WHOIS: Information about registered domain names, IP addresses, and their owners or administrators.
• Services: A list of services detected on the host, including software information when available.

📘

Note

See all available data objects and fields for host records on the Data Definitions page in the Platform web console.

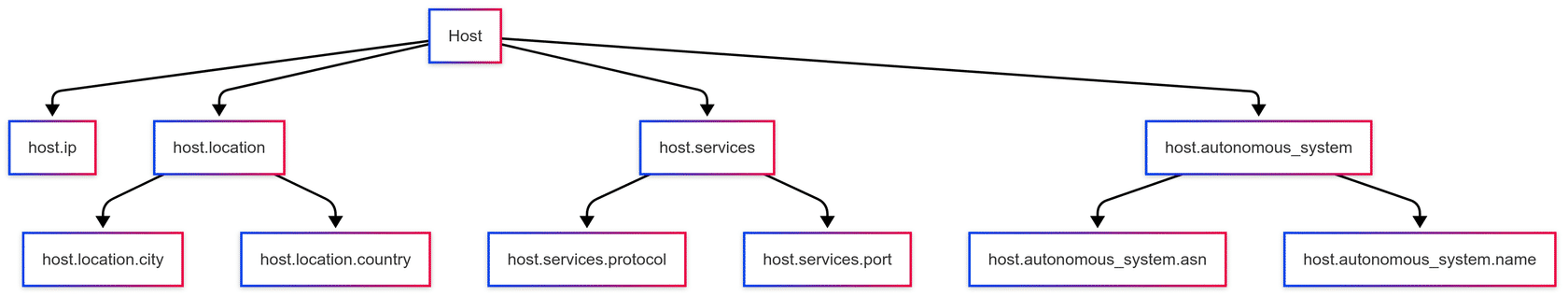

Nested objects and nested fields

On host records, some data objects and fields are nested within other objects.

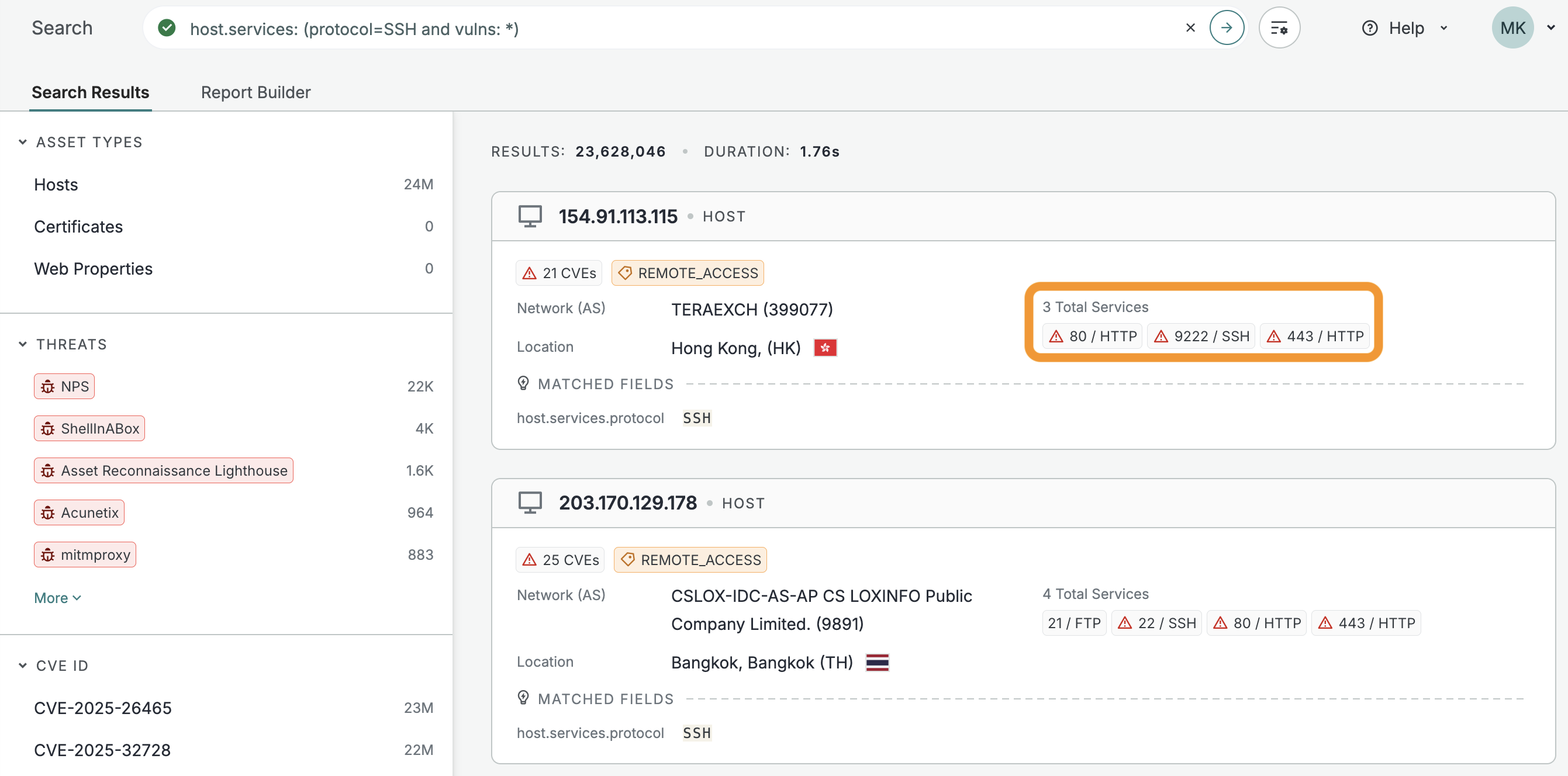

When writing queries in Censys Query Language, you can use nested fields to require that multiple search criteria are true of a single object on a data record (like a service), instead of the host, web property, or certificate as a whole. For example, you can use nested fields in a query to only return results that are presenting a specific service on specific port, such as with the query host.services: (protocol=SSH and port=22).

Service information

Host service objects (host.services) contain detailed information about the protocols running on an IP. Each service contains some common information, such as identified software and hardware, TLS and certificate information, labels, and other metadata.

In addition to plain text names, Common Platform Enumeration (CPE) values are also provided for software and hardware and their components.

📘

Note

Some data fields are restricted. They are only available to users that are on a paid Censys Platform tier or have access to specific Platform modules or datasets. If you see a 🔒 lock icon by a field or value, it means that you must upgrade to view the data. Learn more about paid Platform plans.

Many services contain highly detailed protocol-specific information. This protocol-specific information is found in a nested object with the same name as the protocol. For example, SSH-specific information can be found within host.services.ssh.

Unidentified protocols are reported with UNKNOWN values. This can be because the service is not adhering to a protocol or because the protocol is very uncommon and Censys does not yet have a protocol-specific scanner written for it.

HTTP services use a different representation of protocol-specific data. HTTP service data can be found at host.services.endpoints. Each endpoint offers information about a web application or HTTP GET response for a specific URI. To access web application information, use host.services.endpoints.[application_type], such as host.services.endpoints.prometheus. To access HTTP GET information, use host.services.endpoints.http.

Examples of other useful service data fields include:

• host.services.port: The network port on which the service is running (such as 80 or 443).
• host.services.protocol: The protocol used by the service (for example, HTTP, HTTPS, SSH).
• host.services.banner: A string returned by the service, often containing version information or a welcome message.
• host.services.scan_time: When the service was last observed by a Censys scan.
• Protocol-specific objects and their attendant fields (host.services.ssh, host.services.rdp, and so on): Detailed, parsed information depending on the protocol (such as TLS/SSL certificate details for HTTPS, HTTP banner and server software for HTTP, SSH banner and algorithms for SSH).
• host.services.software: Information about the software identified on the service, including name, version, and vendor, often in the Common Platform Enumeration (CPE) format.

These fields help identify the nature of the services on a host and can be used to detect outdated software, misconfigurations, or potential vulnerabilities.

Labels

Labels on services (host.services.labels) are used to categorically describe the services present on hosts. Label values are always in screaming snake case. Examples include:

• LOGIN_PAGE
• OPEN_DIRECTORY
• WAF
• DEFAULT_LANDING_PAGE

Example host record

The following is an example of a host record obtained via API to illustrate the data structure. This record indicates that the host at IP address 137.220.232.142 is located in Tokyo, Japan, belongs to ASN 152194, and has an SSH service running on port 22.

{
  "result": {
    "resource": {
      "ip": "137.220.232.142",
      "location": {
        "continent": "Asia",
        "country": "Japan",
        "country_code": "JP",
        "city": "Tokyo",
        "postal_code": "101-8656",
        "timezone": "Asia/Tokyo",
        "province": "Tokyo",
        "coordinates": {
          "latitude": 35.6895,
          "longitude": 139.69171
        }
      },
      "autonomous_system": {
        "asn": 152194,
        "description": "CTGSERVERLIMITED-AS-AP CTG Server Limited",
        "bgp_prefix": "137.220.232.0/24",
        "name": "CTGSERVERLIMITED-AS-AP CTG Server Limited",
        "country_code": "HK"
      },
      "whois": {
        "network": {
          "handle": "CTG220-192-JP",
          "name": "CTG Server Ltd.",
          "cidrs": [
            "137.220.192.0/18"
          ],
          "updated": "2022-03-30T00:00:00Z"
        }
      },
      "services": [
        {
          "port": 22,
          "protocol": "SSH",
          "transport_protocol": "tcp",
          "software": [
            {
              "source": "censys",
              "confidence": 0.9,
              "evidence": [
                {
                  "data_path": "protocol",
                  "found_value": "SSH",
                  "literal_match": "SSH"
                }
              ],
              "type": [
                "REMOTE_ACCESS"
              ],
              "part": "a"
            },
            {
              "source": "censys",
              "confidence": 0.9,
              "evidence": [
                {
                  "data_path": "protocol",
                  "found_value": "SSH",
                  "literal_match": "SSH"
                }
[truncated for brevity]
}

Frequently-used data on host records

Beyond basic service information, host records contain several high-value objects, nested objects, and attendant fields that provide deeper insights for security assessments, compliance checks, and threat intelligence gathering. The following are just a few examples.

• host.location: Detailed geographical data, useful for mapping and regional analysis.
• host.services.banner: Provides raw data from the service, which can be examined for version detection, threat and vulnerability assessment, and more.
• host.services.software: Information about the software identified on the service, including the product name (host.services.software.product), vendor (host.services.software.vendor), version (host.services.software.version), and software components (host.services.software.components). Software values in plain language and CPE format (host.services.software.cpe) are provided in this object.
• host.services.cert: Details about the certificate used for a service, including subject, issuer, validity period, and subject information.
  • Service certificate information, such as the certificate SHA-256 hash contained in host.services.cert.fingerprint_sha256, is particularly useful for pivoting to related web infrastructure using the same certificate (in the present or historically).
